Arcgen WM 200SSD Diesel Welder

Arcgen WeldMaker 200SSD

Product Description

ArcGen’s Weldmaker 200SSD is a super silent Welder Generator providing excellent arc characteristics for all types of manual metal arc electrodes including cellulosic types.  The Weldmaker 200SSD is capable of continuous hand welding up to 4.00mm electrodes and is protected against overload by a thermal trip for operator safety.  In the event of low oil pressure, high water temperature, charging circuit failure auto shutdown will operate to ensure site safety and no damage occurs to the machine. The 32amp and 16amp sockets are protected by double pole overload trips, fitted as standard, with combined main circuit/earth leakage breaker. Completely versatile, the Weldmaker 200SSD has a 3kW 110V AC auxiliary output which can be switched between 50Hz and 60Hz and is independent from the welding output allowing other tools to be used.  Powered by an electric start Kubota Z402 water cooled twin cylinder diesel engine, the auto idle switch and 15 litre fuel tank provides up to 10 hours uninterrupted operation.  The super silent Weldmaker 200SSD meets all the latest European noise and CE legislation.

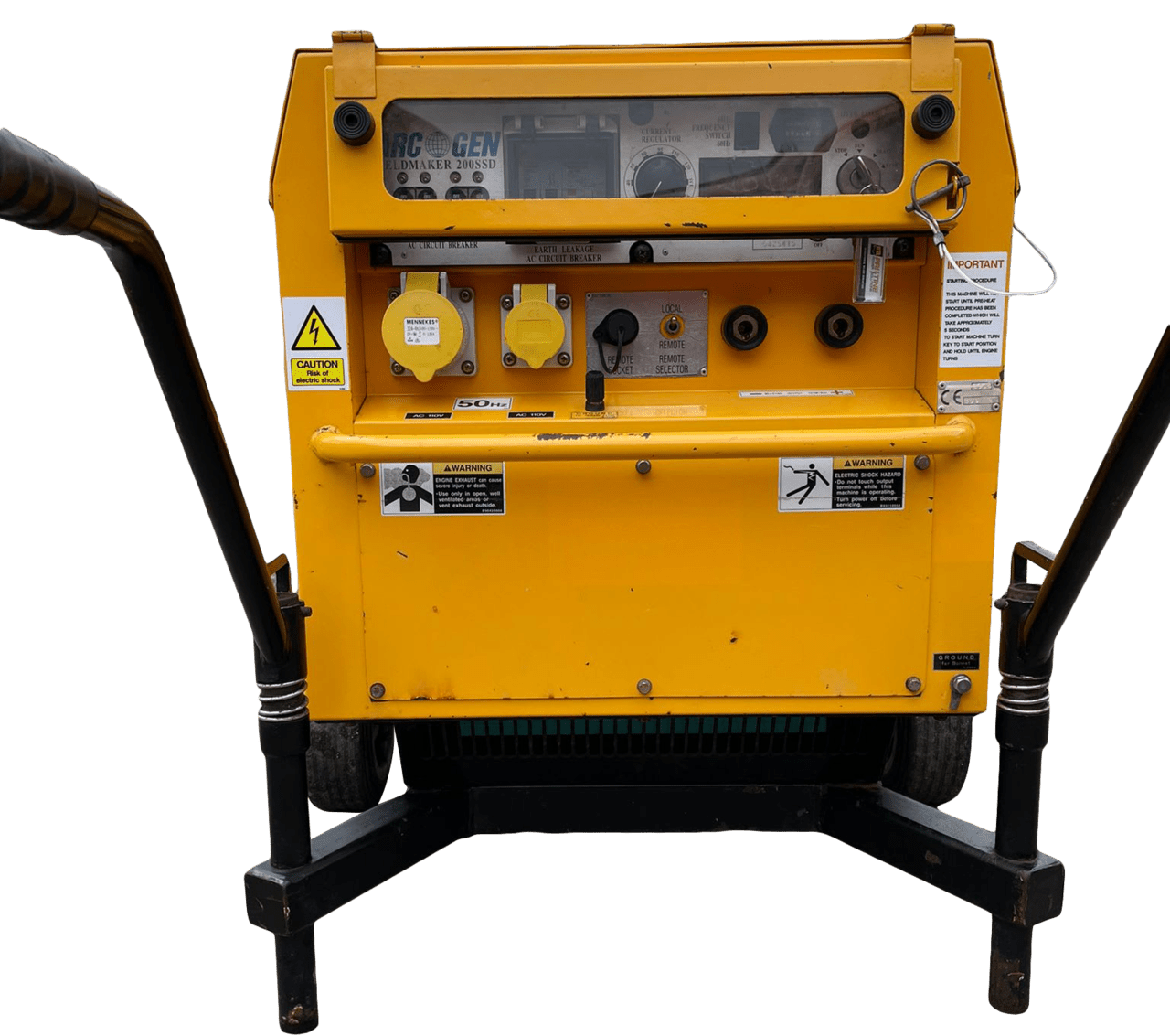

A yellow machine with a warning sign on it

Features:

  • Super silent operatioon reduces noise pollution
  • Welding up to 4.00mm electrodes
  • Excellent arc characteristics for all types of manual metal arc electrodes including cellulosic types
  • Compact & lightweight available trolley mounted with fold away handles or on road tow trailer
  • Auto-idle giving up to 10 hours operation with no need to refuel
  • Welding and auxiliary outputs can be used simultaneously
  • Infinitely variable amperage control for precise setting
  • Brushless Generator reduces maintenance costs

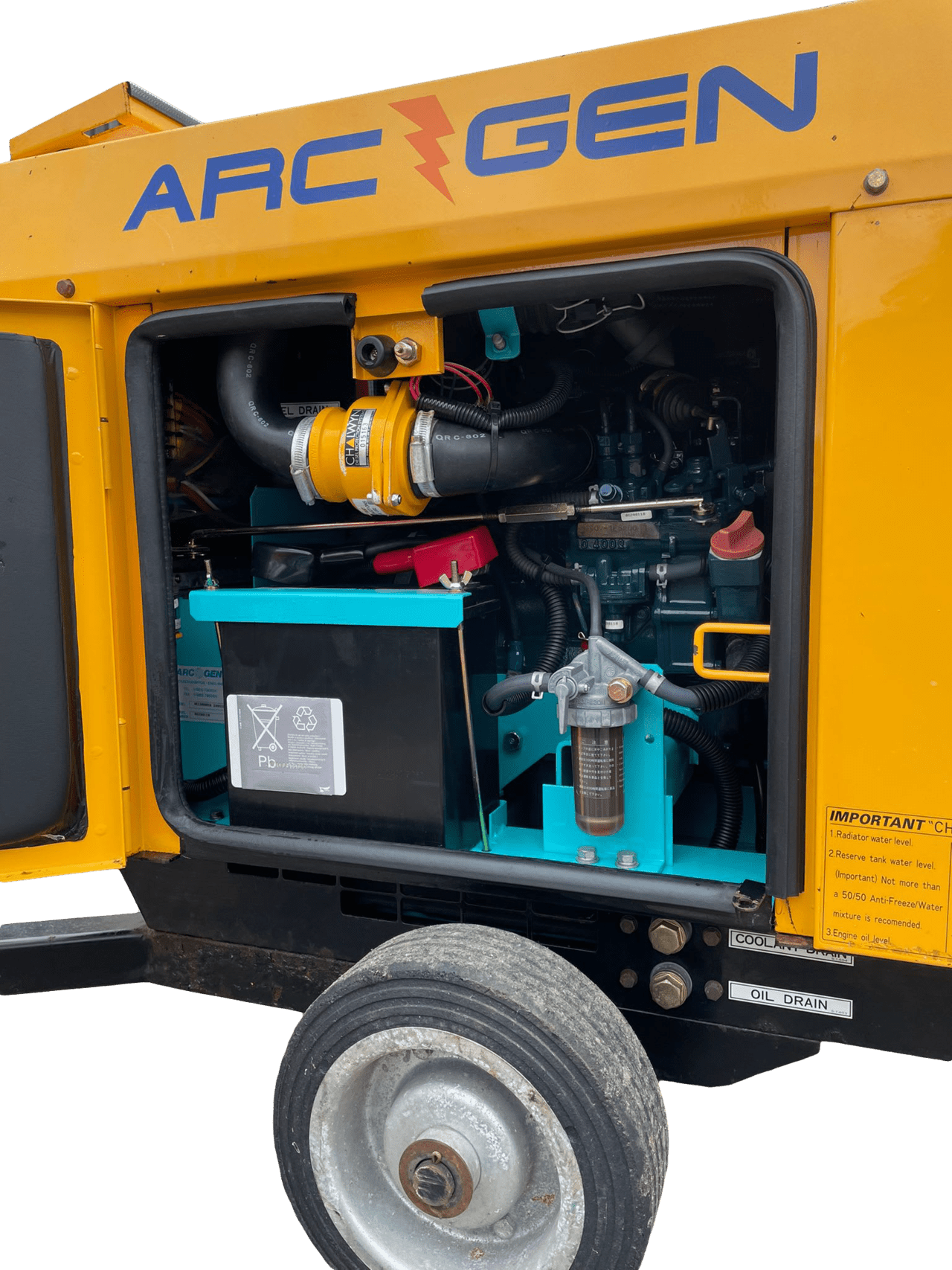

A yellow generator with the door open and the engine visible.

Weldmaker 200SSD Specifications

Welding output: 30 to 200amps DC

Auxiliary output: 110V AC 3kW 50/60Hz1 x 32amp & 1 x 16amp output receptacles

Engine: Kubota Z402 water cooled twin cylinder diesel engine with electric start
Sound level: 60dB(A) @ 7metres
Fuel capacity: 15 litres

Fuel consumption: 1.47 litres per hour

Running Time: 10hrs

Dimensions Wheel barrow trolley: L 1030mm W 770mm H 790mm |

Dry Weight: 210Kg
Road trailer (ball hitch): L 2.38m W 1.18m H 1.15m Wt 470Kg (dry)


Dimensions: Wheelbarrow trolley: L 1030mm W 770mm H 790mm Dry weight 210kg

Optional Extras:

  • Road towable trailers
  • Wheel barrow trolley mount
  • with foldaway handles
  • Remote control
  • Welding cables
  • Parallel box

Offshore specification

  • Spark arrestor
  • Chalwyn valve
  • Drip tray
  • Fuel water trap
  • Emergency stop button
  • Anti-static fan belt
  • Braided fuel lines
  • Battery isolator switch
  • Fuel isolator shut off valve

Safety Features:

  • Auto engine shutdown will operate
    in the event of low oil pressure, high water temperature, charging failure or
    with door opening for enhanced safety
  • Earth leakage circuit breaker with earth rod fitted for increased site safety


Optional Specifications

Petrochemical sepcification:

  • Spark arrestor
  • Chalwyn valve
