Arcgen WM 332SSD-K Diesel Welder

Arcgen WM332SSD-K

Product Description

The Weldmaker 332SSD super silent welder / generator is a versatile high performance machine for use with either one or two operators.  It provides excellent welding characteristics for all types of DC manual metal arc electrodes, especially cellulosic types for pipeline welding.  An arc selector switch is available in single and dual operator mode enabling the operator(s) to choose between cellulosic and basic electrode output. The welding output is operated by a single range control which gives the user current range from 60 to 330 amps in single mode and 30 to 165 amps in dual mode.  The totally brushless welding alternator is controlled by an advanced IGBT control system which offers proven reliability, high performance and enables the output to be validated throughout the range.


Output of the 6kW auxiliary generator is regulated by an AVR providing voltage regulation of +/-1.5%. Welding and auxiliary power are available at the same time.

Powered by an electric start Kubota diesel engine, the unit has a 36 litre fuel tank which provides up to 20 hours of operation. The machine has auto-idle fitted as standard, which operates from the welding and auxiliary outputs reducing noise and fuel consumption.  Auto shutdown is also included, which will operate in the event of low oil pressure / high water temperature or thermal overload if the generator overheats.  Remote control facilities are fitted as standard on the control panel with a remote control box and cable optionally available. Super silent in operation the Weldmaker 332SSD meets all the latest European noise and CE legislation.

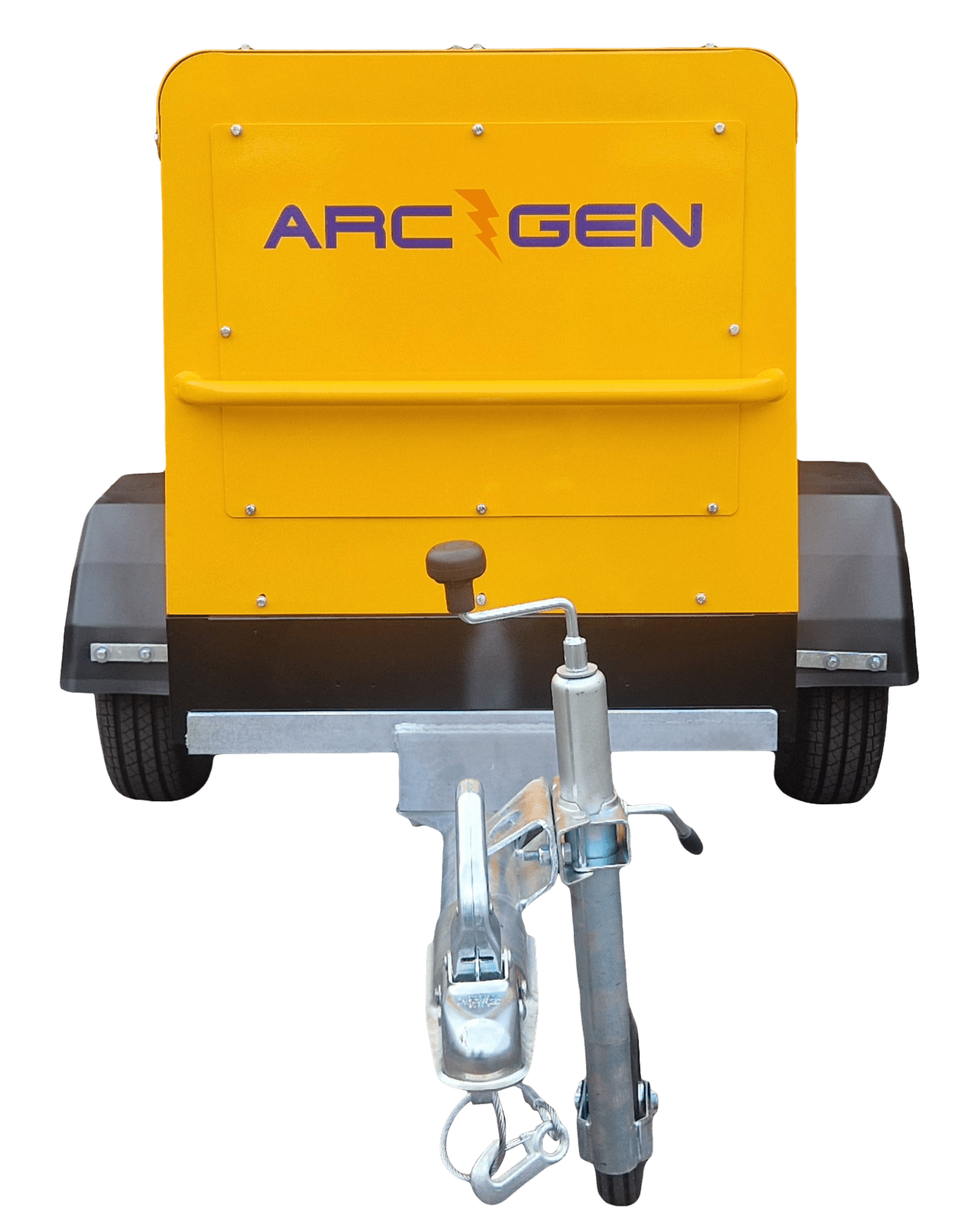

A yellow trailer with the word arc gen on it

Features:

  • 330 amps single welding output
  • Double operator up to 165 amps
  • Super silenced operation
  • Compact design
  • Low oil pressure shutdown
  • High water temperature shutdown
  • Thermal overload protection
  • Auto-idle on welding and auxiliary output
  • Brushless generator
  • Dual voltage auxiliary output
  • 32 amp and 16 amp auxiliary outlets
  • Earth leakage breaker fitted
  • Infinitely variable amperage control
  • Excellent DC welding characteristics
A yellow arc gen generator on a trailer

Weldmaker 332SSD Specifications

Welding output: Single mode 60 to 330 amps DC | Dual mode 30 to 165 amps DC

Auxiliary output: 230V / 110V AC 6kW 50Hz

Engine: Kubota D905 3 Cylinder water cooled
Sound level: 64dB(A) at 7m
Fuel capacity: 36 litres

Fuel consumption: 2.22 litres per hour at 200 amps on a 70% duty cycle

Dimensions Base mounted: L 1.41m W 0.77m H 0.68m Wt 398Kg (dry)
Road trailer (ball hitch): L 2.38m W 1.18m H 1.15m Wt 470Kg (dry)

Addressing Your Needs

  • Welds with 6.0mm electrodes
  • Two operators work from one machine Reduced noise pollution
  • Easy to move and transport
  • Reduces the risk of engine failure
  • Reduces the risk of engine failure
  • Reduces the risk of main stator failure Reduced fuel consumption and operating noise
  • No brushes to wear or replace
  • 110V and 230V AC available together
  • Greater flexibility
  • Increased site safety
  • Precise setting for total welding control
  • Professional standards



Optional Accessories

  • Welding cables
  • Spark Arrester Silencer
  • Trolley Mount
  • Parellel Welding Box
  • Chalwyn Shutdown Valve
  • Remote Control Facility
  • Road Tow Trailer
