Arcgen WM 330CC-CV Diesel Welder

Arcgen WelderMaker 330CC/CV

Product Description

The Weldmaker 330CC/CV really is the machine for any job. With digital CC/CV current/voltage setting the machine is capable of welding stick, MIG (with optional wire feed unit) and TIG (with optional HF slope in/out unit). The machine is capable of all this whilst simultaneously providing 8kVA 3 phase power and 3kVA 110V. Never before has the UK welding market seen such a reliable, economical and versatile welder generator in such a compact package.  It provides excellent welding characteristics for all types of DC manual metal arc electrodes, especially cellulosic types for pipeline welding. Digital setting and output gauges ensure accurate current, voltage setting and monitoring.  The efficient Kubota D902 three cylinder water cooled diesel engine with electric start provides outstanding fuel consumption savings and its auto-idle facility provides up to 15.5 hours of use with no refueling. The ultra fuel efficient E-mode allows welding operation whilst the engine idles and gradually increases engine speed with demand.

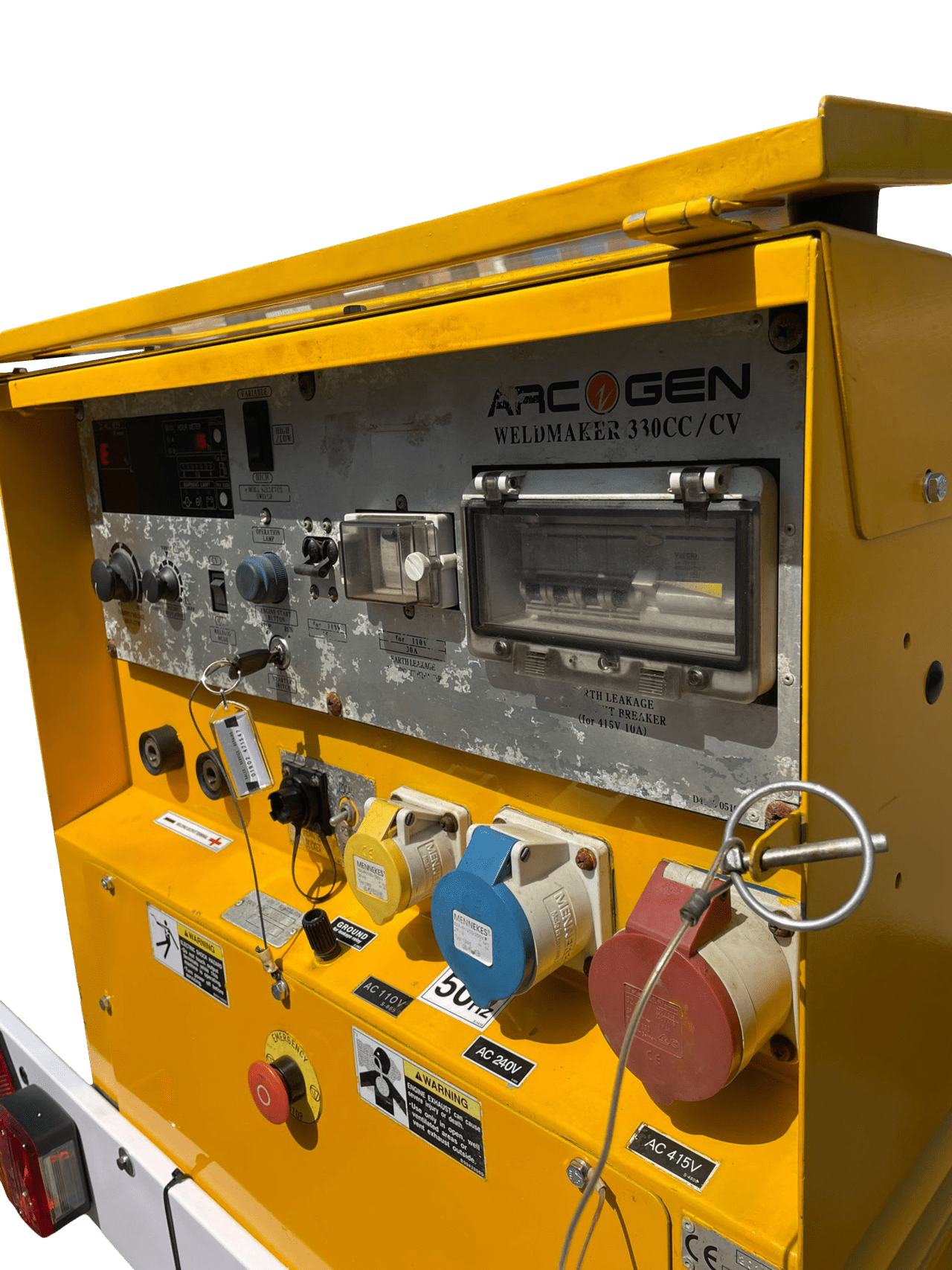

A yellow box with a bunch of electrical outlets on it.

Features:

  • Fully compliant with latest CE and EU standards
  • Super silent operation reduces noise pollution
  • Automatic engine start and stop creating unrivalled fuel consumption savings
  • Welding up to 6.00mm electrodes
  • Welding and auxiliary outputs can be used
  • simultaneously
  • Infinitely variable amperage/voltage control for precise setting
  • Constant current and voltage output for MMA & MIG welding
  • Digital setting and output gauges for accurate current & voltage setting & monitoring
  • Compact design available skid mounted or on road tow trailer
  • AVR controlled providing voltage regulation of +/-1.5%
  • Arc force control providing excellent welding characteristics, especially for cellulosic pipeline welding
  • E-mode allowing welding operation 30 – 150amps whilst engine remains idling
  • Auto-idle giving up to 15.5hrs operation with no need to refuel
  • Brushless generator reduces maintenance costs
  • Digital fault readout diagnosis system

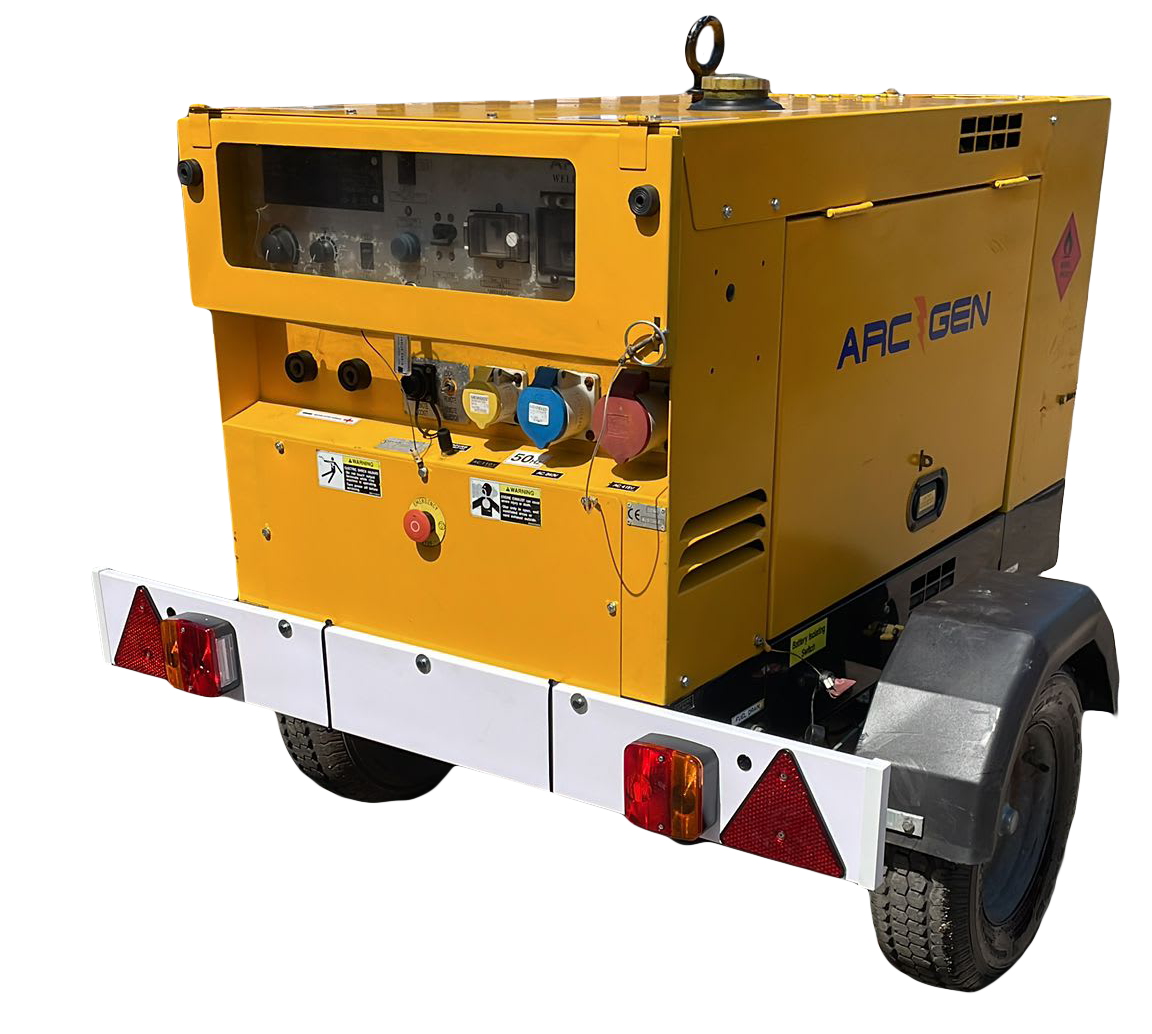

A yellow generator is on a trailer on a white background.

Weldmaker 330CC/CV Specifications

Welding output: Single mode CC mode 30 to 300amps DC CV mode 14 to 32volts DC

Auxiliary output: 3 Phase 415V AC 50Hz 8kVA 10amp, 1 Phase 110V AC 50Hz 3kVA 32amp, 1 Phase 110V AC 50Hz 3kVA 16amp

Engine: Kubota D905 3 Cylinder water cooled
Average Sound Pressure level: 67dB(A) @ 7metres

Engine Type: Kubota D902 three cylinder water cooled diesel engine with electric start
Fuel capacity: 36 litres

Fuel consumption: 2.32 litres per hour

Running time: 15.5 hours

Dimensions: L 1325mm W 720mm H 835mm Wet weight 456kg

Road tow trailer: L 2505mm W 1260mm H 1190mm Wet weight 519kg


Optional extras:

  • Road towable trailer
  • Wheel barrow trolley with foldaway handles
  • Welding cables
  • Wire feed unit
  • Remote control

Safety Features

  • Auto engine shutdown will operate in the event
  • of low oil pressure, high water temperature, thermal overload, charging failure or with door opening for enhanced safety
  • Earth leakage circuit breaker and earth rod fitted for increased site safety
  • Emergency stop button

Offshore specification

  • Spark arrestor
  • Chalwyn valve
  • Drip tray
  • Fuel water trap
  • Anti-static fan belt
  • Braided fuel lines
  • Battery isolator switch
  • Fuel isolator shut off valve

Optional Specifications:

Petrochemical specification:

  • Spark arrestor
  • Chalwyn valve
