Arcgen Powermaker 15MV-K 3 Phase Diesel Generator

Arcgen PowerMaker 15MV-K

Product Description

The Powermaker 15MVK multi-voltage generator has been designed to utilise the latest technology to provide a super silent machine which offers three voltages simultaneously. The alternator fitted to the Powermaker 15MVK uses damper windings and an automatic voltage regulator to give excellent performance characteristics including extremely low voltage regulation and minimal waveform distortion.  A water cooled engine coupled with the highly efficient alternator ensures excellent fuel consumption. The engine meets the latest European emission regulations. A duct construction and highly efficient sound insulation reduces the operating noise to a super silent whisper of 65dB(A) at 7m. The engine is fitted with automatic fuel air extraction and auto shutdown in the event of low oil pressure and / or high water temperature.

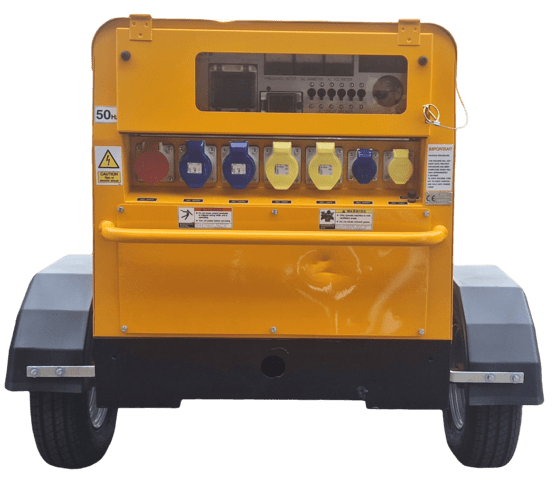

A yellow machine with a warning sign on it

Features:

  • Multi voltage output
  • Super silenced operation
  • Compact design
  • Low oil pressure shutdown
  • High water temperature shutdown
  • AVR generator controlled output
  • Brushless generator
  • Earth leakage breaker fitted
  • 32 amp and 16 amp auxiliary outlets
  • Hard wire terminal board
  • Single phase socket protection

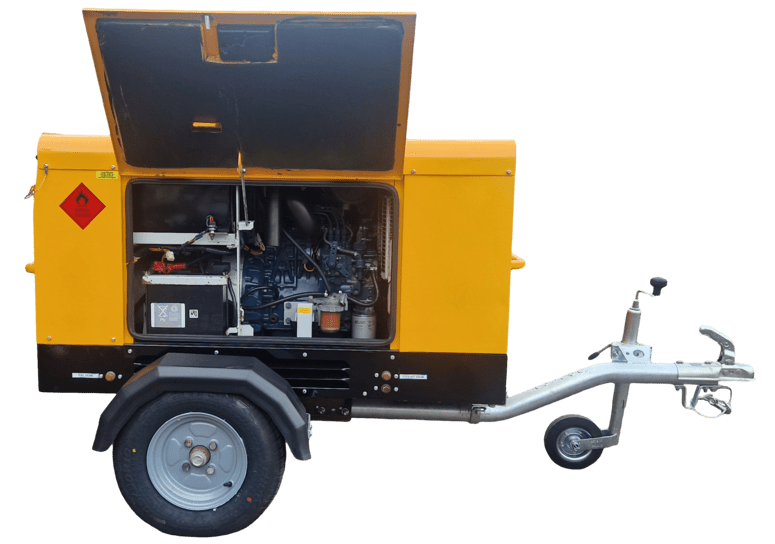

A yellow and black trailer with the door open

Powermaker 15MVK Specifications

Output 415v 3ph: 15kVA AC

Output 110v 1ph cte: 12kVA AC

Output 240v 1ph: 10.8kVA (3 X 3.6kVA) AC

Fuel capacity: 42 litres

Fuel consumption: 3.8 litres per hour on a 75% load
Engine: Kubota D1005 three cylinder water cooled

Sound level: 65dB(A) at 7m

Dimensions Base mounted: L 1.52m W 0.72m H 0.77m Wt 437Kg

Road trailer (ball hitch): L 2.3m W1.29m H 1.15m Wt 475 Kg

Optional Accessories

  • Plugs for Socket Outlets
  • Trolley Mount
  • Chalwyn Shutdown Valve
  • Road Tow Trailer
  • Spark Arrester Silencer

Addressing Your Needs

  • 110V / 230V / 415V AC available together
  • Reduced noise pollution
  • Easy to move and transport
  • Reduces the risk of engine failure
  • Reduces the risk of engine failure
  • Excellent voltage regulation
  • No brushes to wear or replace
  • Increased site safety
  • Greater flexibility
  • Greater flexibility
  • Increased site safety

Related Products

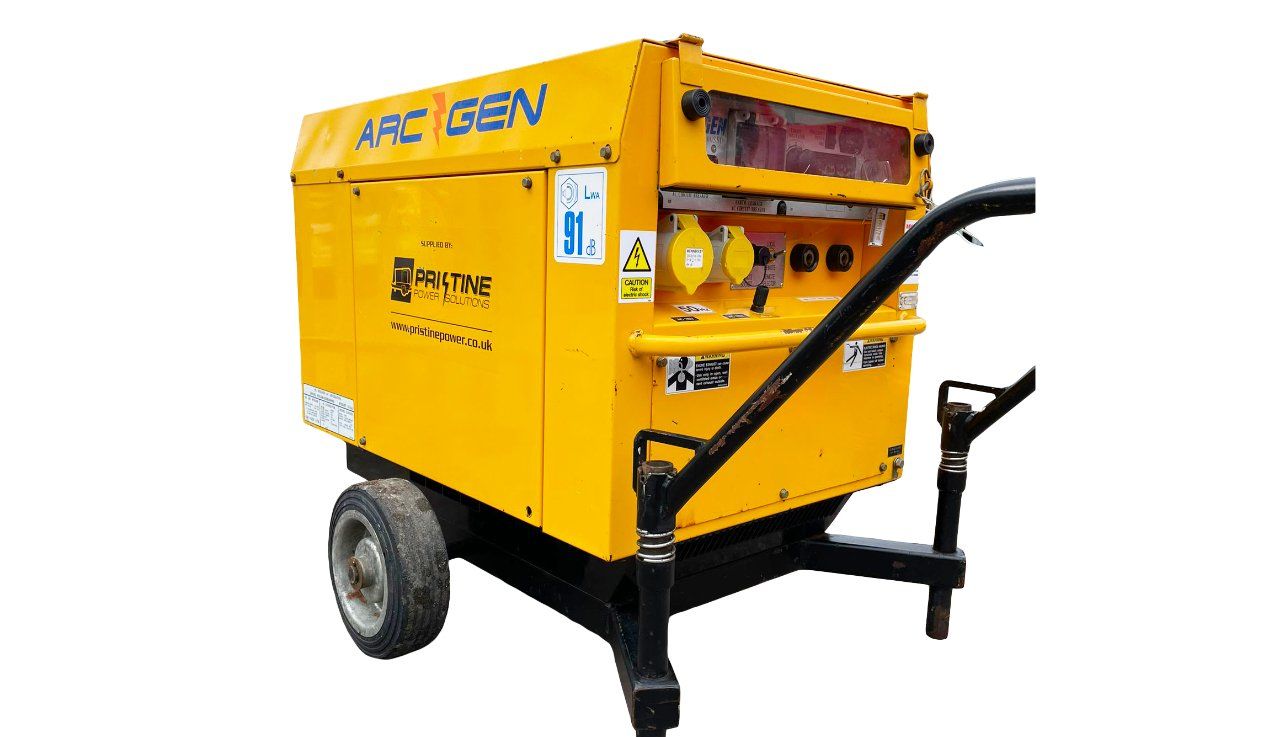

A yellow generator is sitting on a trailer on a white background.
